Model:
TCHB0905-471Y
Brand:
EASTEVER
Inductance:
470uH
Turns Ratio(±5%):
1:1
DCR(mΩ)Max:
280
Data Sheet:
TCHB0905-471Y.pdf

Product Description

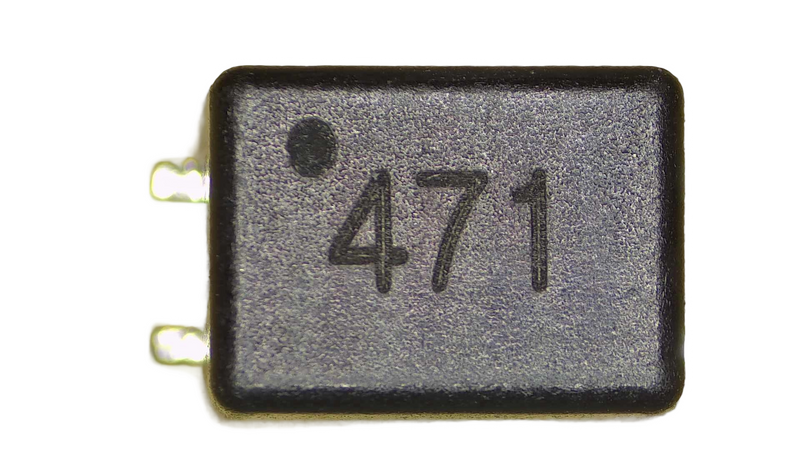

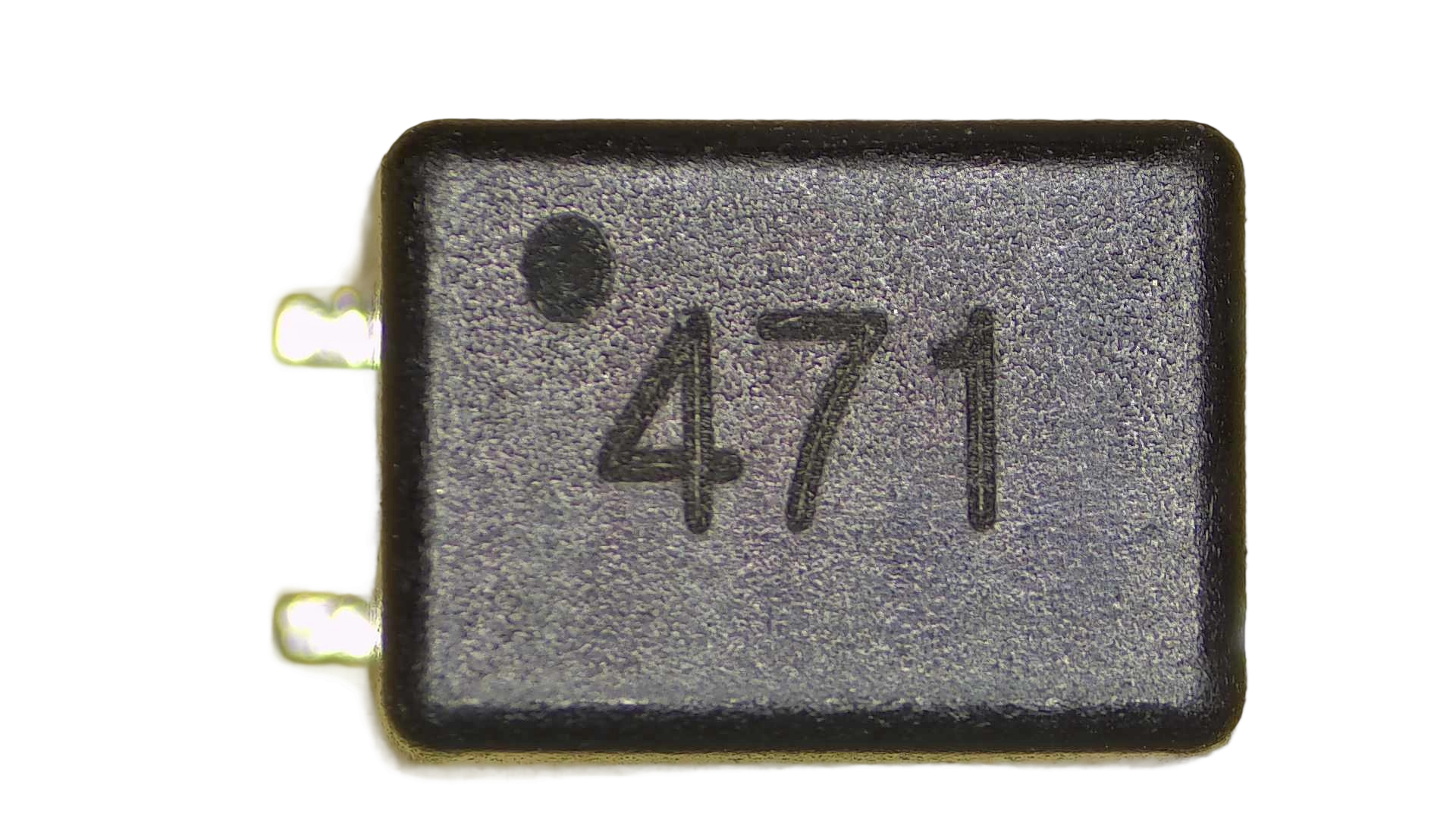

TCHB0905-471Y

This inductor features 470uH inductance (1-4=2-3, ±50%/-30% tolerance @100KHz/0.1V), 280mΩ max DCR, 1:1 turns ratio, 1.0A rated current, 0.5KVAC hi-pot (N1-N2, 1mA/2S), and ≥10000 impedance @10MHz. RoHS compliant, operating at -25°C to +85°C.

Features

Stable performance at 100KHz

Low DCR for efficient power transfer

1:1 turns ratio for balanced signal transmission

1.0A rated current for reliable operation

High impedance at 10MHz for EMI suppression

Applications

Power management circuits

Signal isolation systems

Consumer electronics (e.g., chargers, audio devices)

Industrial control modules

Automotive auxiliary electronics

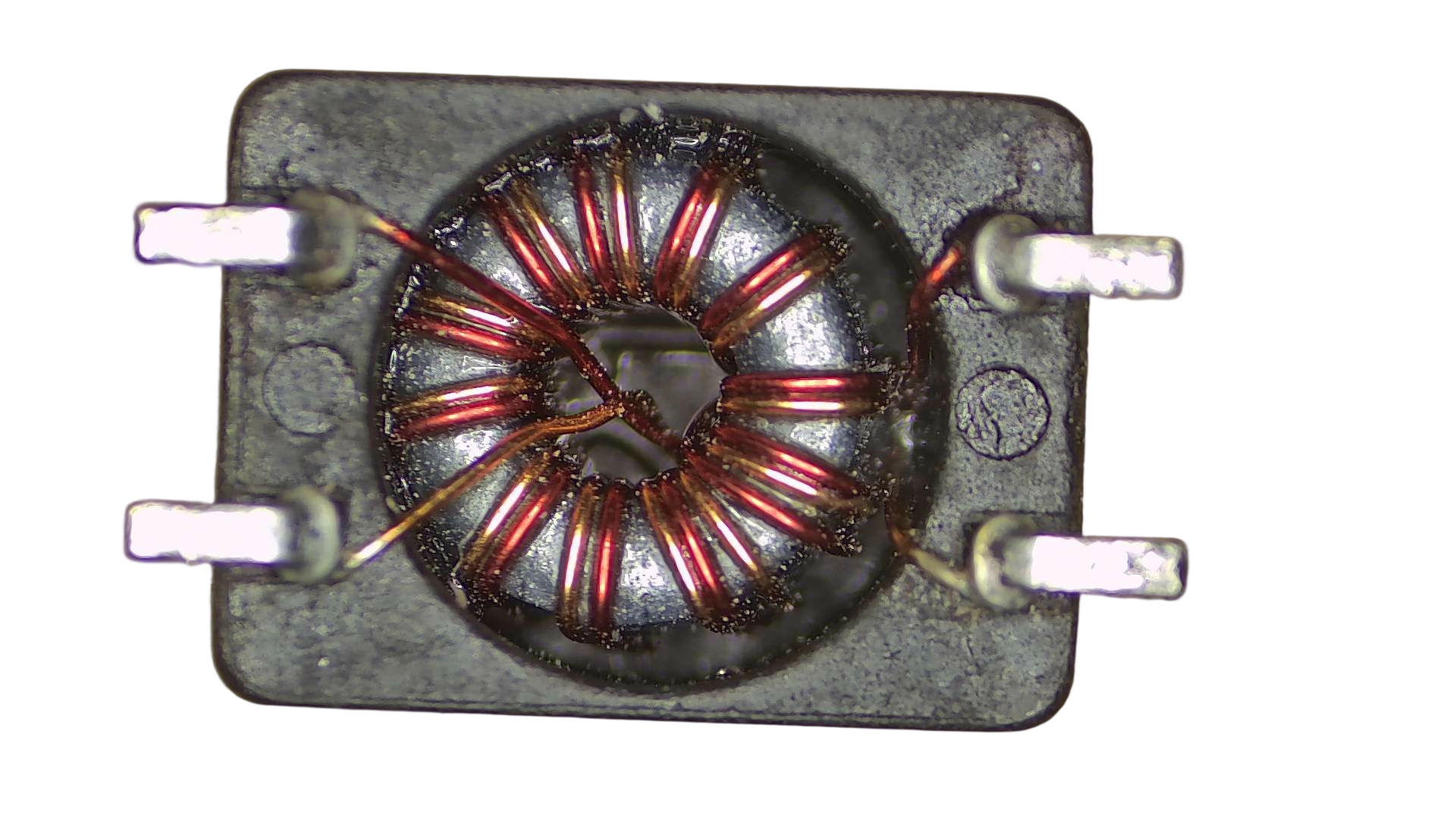

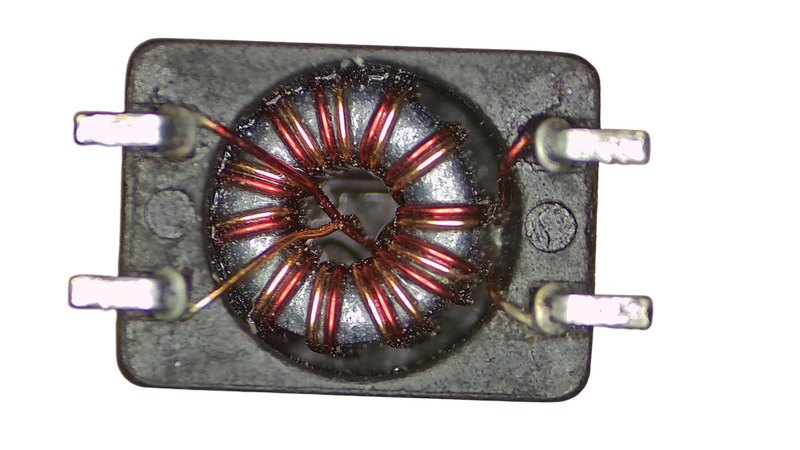

样品1
