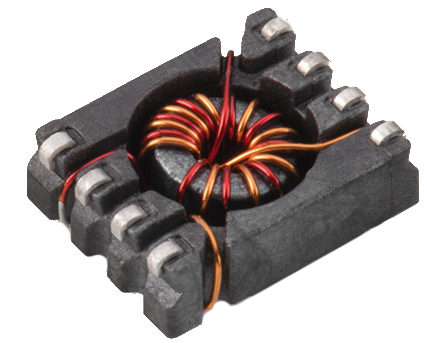

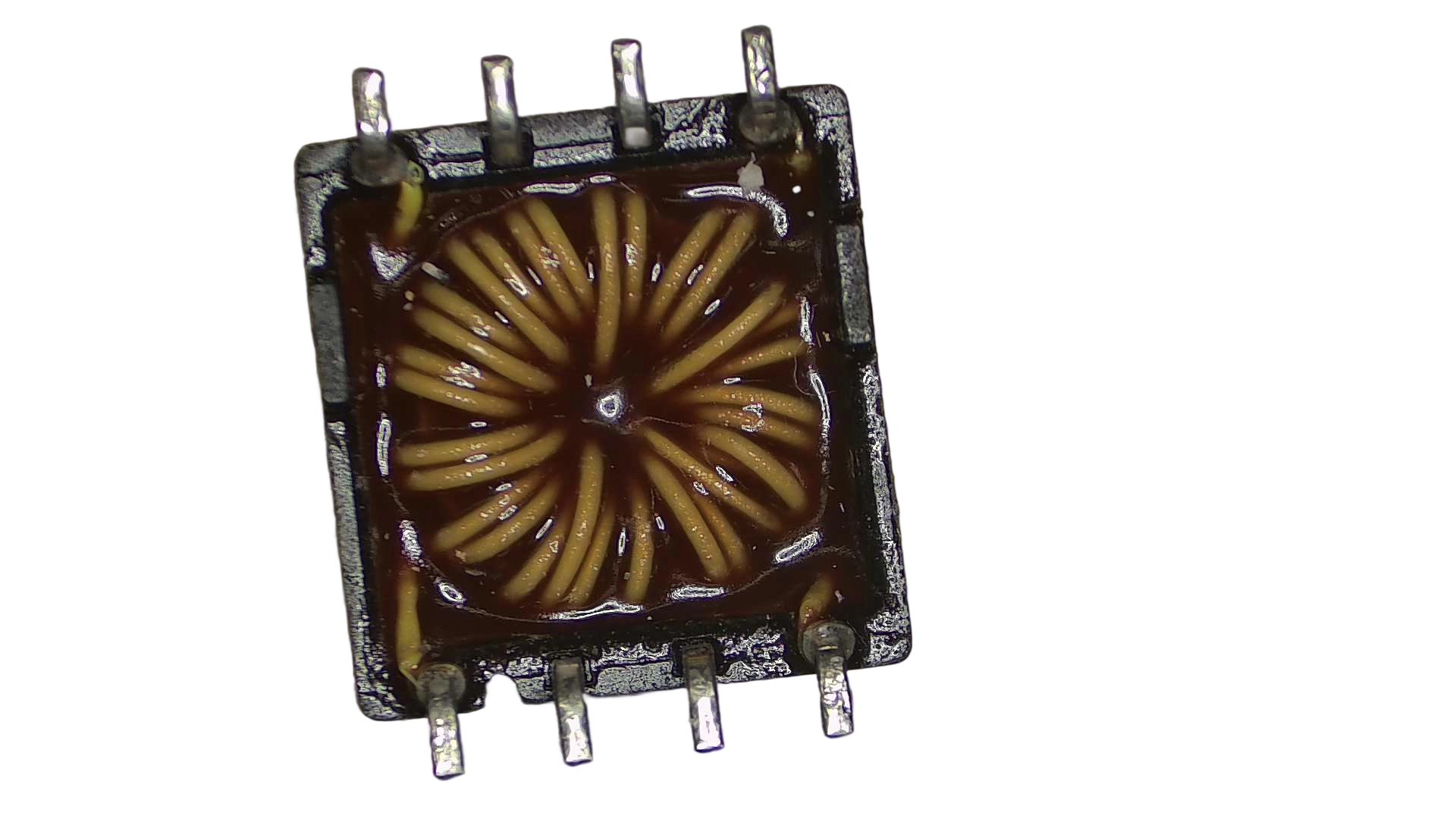

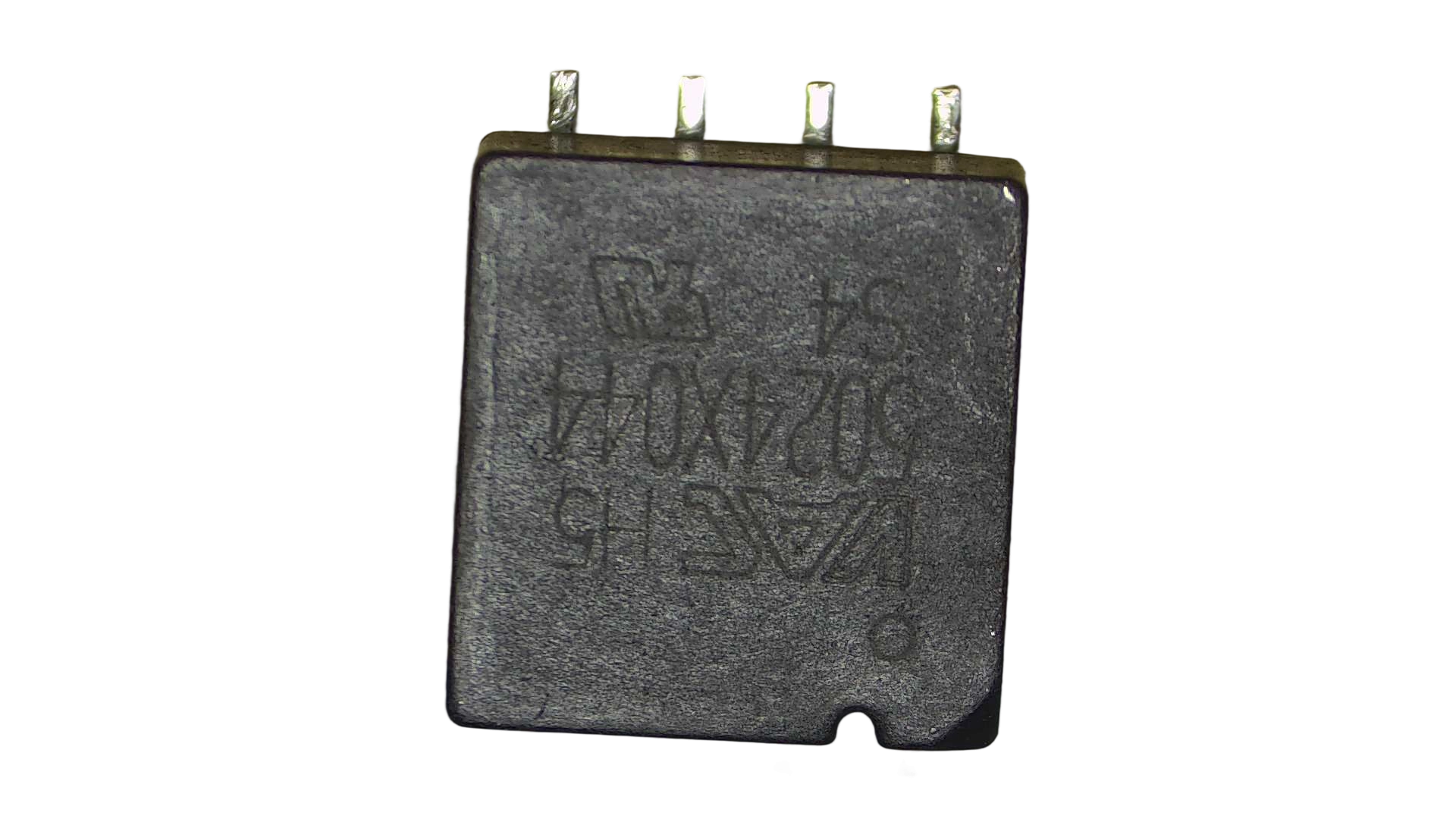

TCHB1007-142N
EASTEVER
1.4mH±30％
1:1±2%
200
TCHB1007-142N features 1.4mH±30% inductance (1-4=8-5, @10KHz/0.1V), ≤0.3uH leakage inductance (LK, 8-5 @1MHz/0.1V with 1-4 shorted), and 1:1±2% turns ratio (1-4:8-5 @20KHz/0.1V). It has ≤200mΩ DCR, ≤25pF inter-winding capacitance (Cp), and passes AC5KV/1mA/60S hi-pot. RoHS compliant, operating at -40°C to +85°C, storing at -25°C to +40°C.
Features
• Stable inductance at 10KHz for consistent signal handling
• Low leakage inductance (LK) for minimal energy loss
• Precise 1:1 turns ratio for balanced transmission
• Low DCR and Cp for efficient performance
• High hi-pot rating for safety and insulation
• Wide operating temperature range
Applications
• Audio equipment
• Signal isolation circuits
• Power conversion systems
• Industrial control modules
• Communication devices
TCHB1007-142N features 1.4mH±30% inductance (1-4=8-5, @10KHz/0.1V), ≤0.3uH leakage inductance (LK, 8-5 @1MHz/0.1V with 1-4 shorted), and 1:1±2% turns ratio (1-4:8-5 @20KHz/0.1V). It has ≤200mΩ DCR, ≤25pF inter-winding capacitance (Cp), and passes AC5KV/1mA/60S hi-pot. RoHS compliant, operating at -40°C to +85°C, storing at -25°C to +40°C.
