TCHB0805-102Y
EASTEVER
1.0
200
TCHB0805-102Y

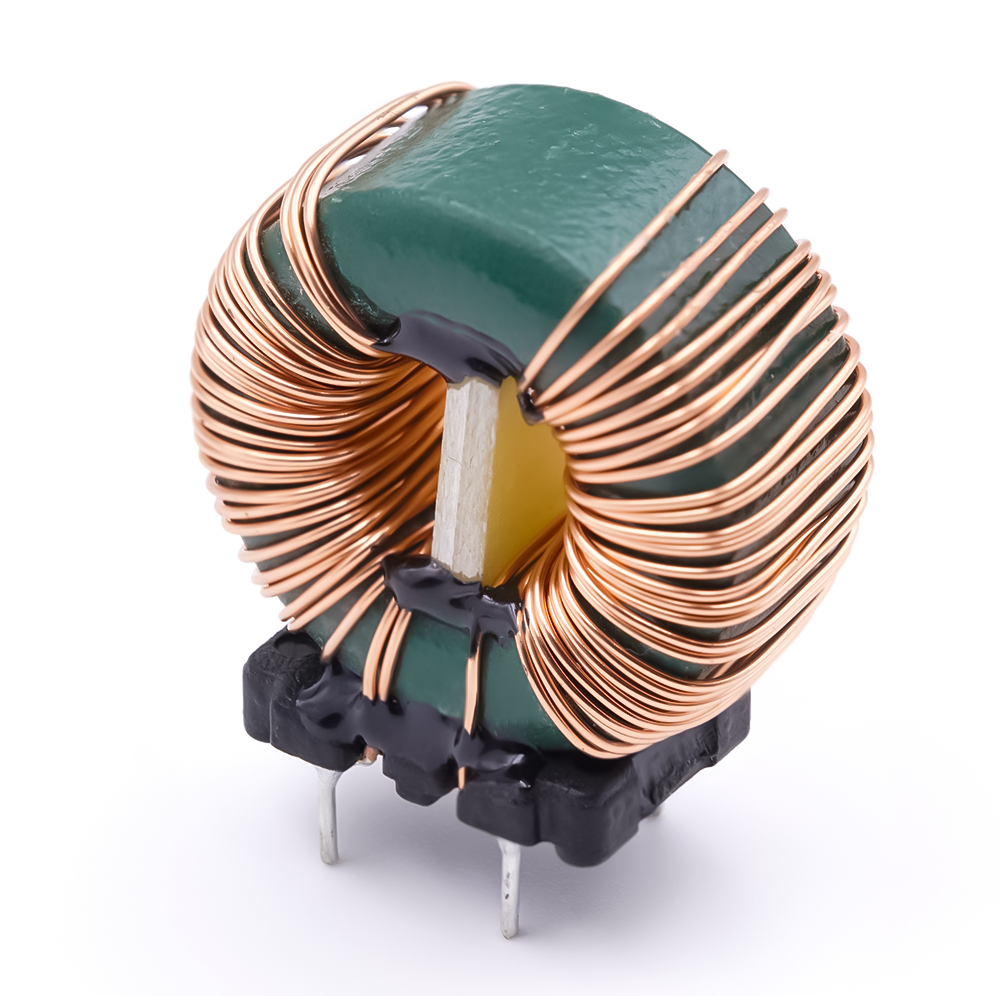

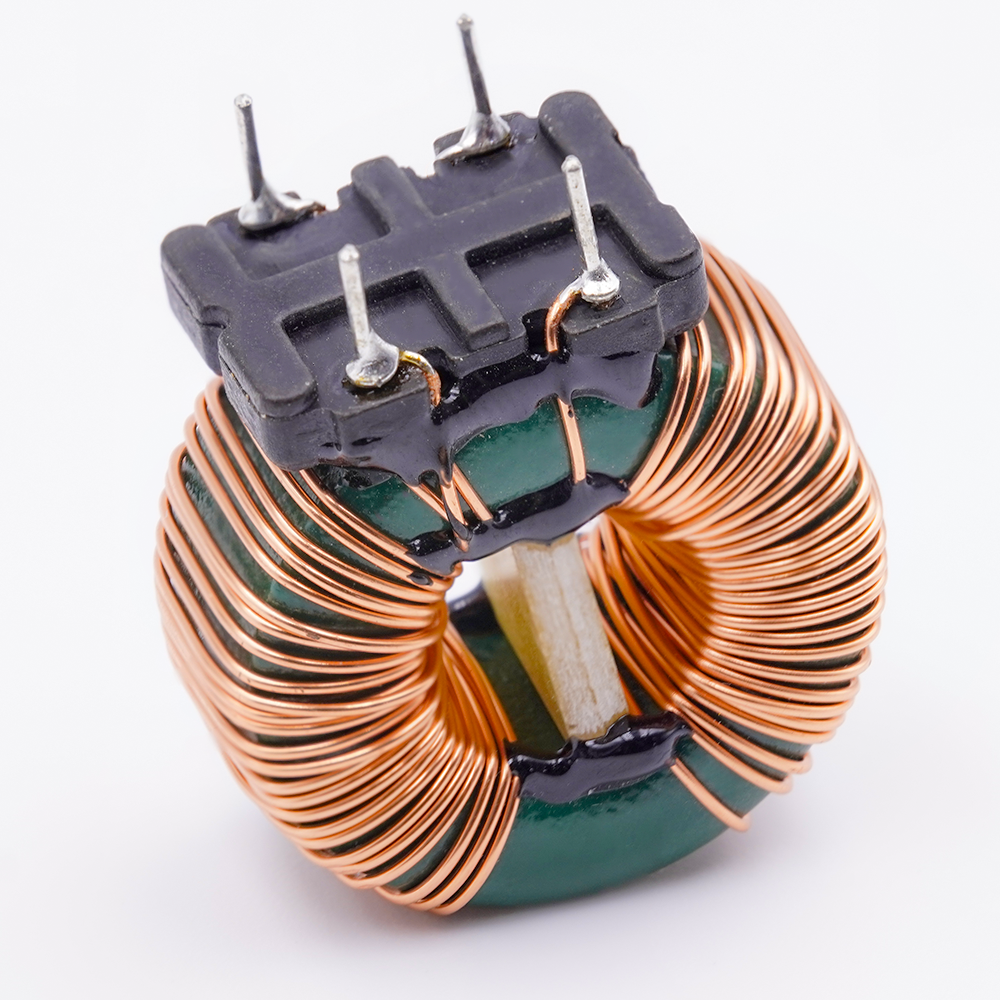

TCHB0805-102Y features ≥1.0mH inductance (1-4=2-3, @100KHz/0.1V), ≤200mΩ DCR, and typically 5000Ω impedance (1-4=2-3 @5MHz). It passes 500VAC hi-pot (1,4-2,3) and supports 1.5A max IRMS. RoHS compliant, operating at -25°C to +105°C (with temp rise) and storing at -25°C to +40°C (≤70% RH).
Stable inductance at 100KHz for consistent performance
Low DCR to minimize power loss
High typical impedance at 5MHz for noise suppression
1.5A max IRMS with controlled temperature rise
RoHS compliance for global compatibility
Power supply filtering
Signal conditioning circuits
Consumer electronics (e.g., chargers, audio devices)
Industrial control modules
Automotive auxiliary systems
