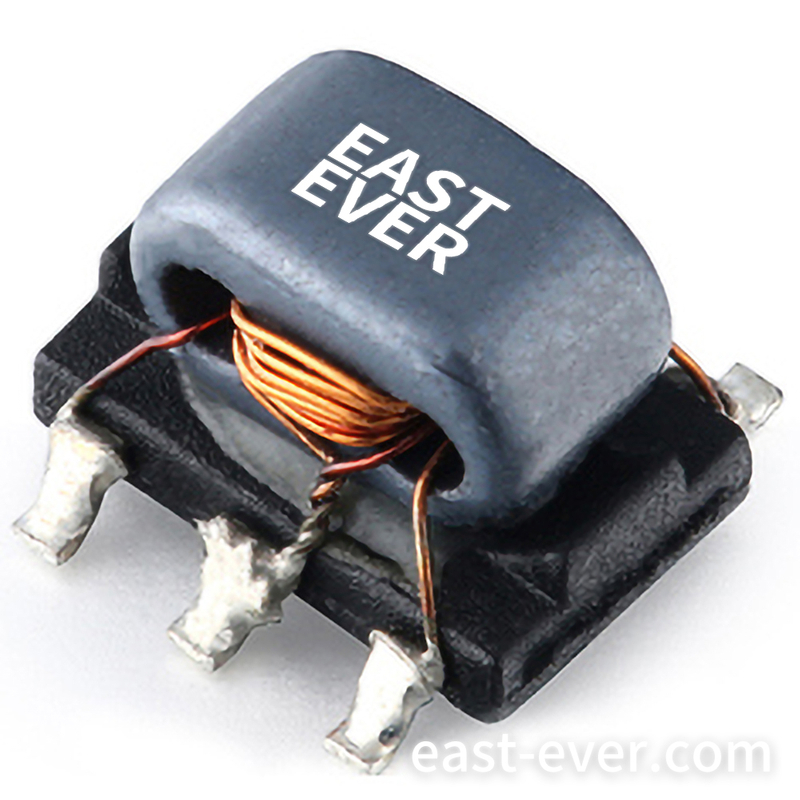

75Ω 2: 1CT Flux Coupled Transformer 5-300 MHz

Availability:
Quantity:
  • EBA0302-G009326

  • EASTEVER

  • 0.5

  • 5-300

  • 0.4

  • 20

  • 75

  • A

  • B009

  • 2:1CT

  • 5

  • 300

  • 2

  • EBA0302-G009326.pdf

Features::

◆75 Ω  Impedance,700mA Max

◆High Frequency, Low loss, Low cost

◆Turns Ratio:1‐3:4‐6=1:1.5±2%@20KHz,1V

◆Insertion loss: 2.0dB Max;  Return  loss: 12.0dB Min

◆Operating temperature range:   ‐40℃ to +125℃

◆Storage temperature range:  ‐55℃ to +145℃


Applications:

◆FFor Docsis 3.0 & 4.0 Cable Modem.

◆For Wideband Push-pull Amplifiers.

◆For CATV Amplifiers Module & Set top box.

◆For CATV Optical Receivers and Amplifiers.

◆For VHF/UHF Transmitters and Push-pull Amplifiers.
