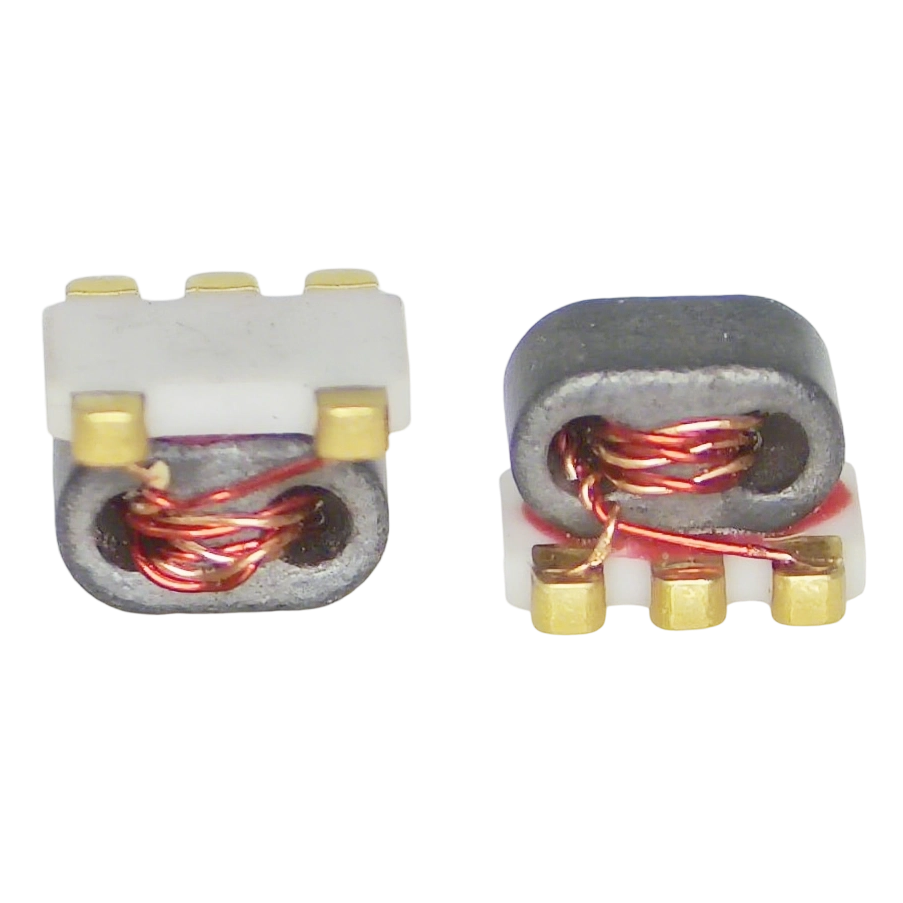

50Ω 1: 8 CT Flux Coupled Transformer 2-500 MHz

Share to:

50Ω 1: 8 CT Flux Coupled Transformer 2-500 MHz

Features •Operating temperature range: -40℃ to +125℃ •Storage temperature range: -55℃ to +100℃ •260°C Reflow Compatible •RoHS compliant and lead free •Input Powere: 250mW •DC Current: 30mA Applications • Impedance matching • Balanced amplifier • Balun • Cellular and VHF

Availability:

Quantity:



Inquire Add to Basket

Model:
EBA0143-G013081
Brand:
EASTEVER
Amp(dB)Typ:
0.5
IL(dB)Typ :
1
Input RL(dB)Typ:
20
Zo(Ω):
50
SEC:
A
Package:
B013
Ω Ratio Pri/Sec:
1:8CT
Min(MHz):
2
Max(MHz):
500
Phase(°)Typ:
1
Data Sheet:
EBA0143-G013081.pdf

Flux Coupled Transformer Antenna Balun
