Why would a communication board for a charging pile bring the purchase to a radio frequency transformer

EV CHARGING COMMUNICATION COMPONENTS

RF TRANSFORMER FOR EVCC & SECC

RF Transformers for EV Charging Communication Boards

Eastever Electronics supports EVCC and SECC communication board designs with RF transformers for PLC signal coupling and impedance matching in EV charging applications.

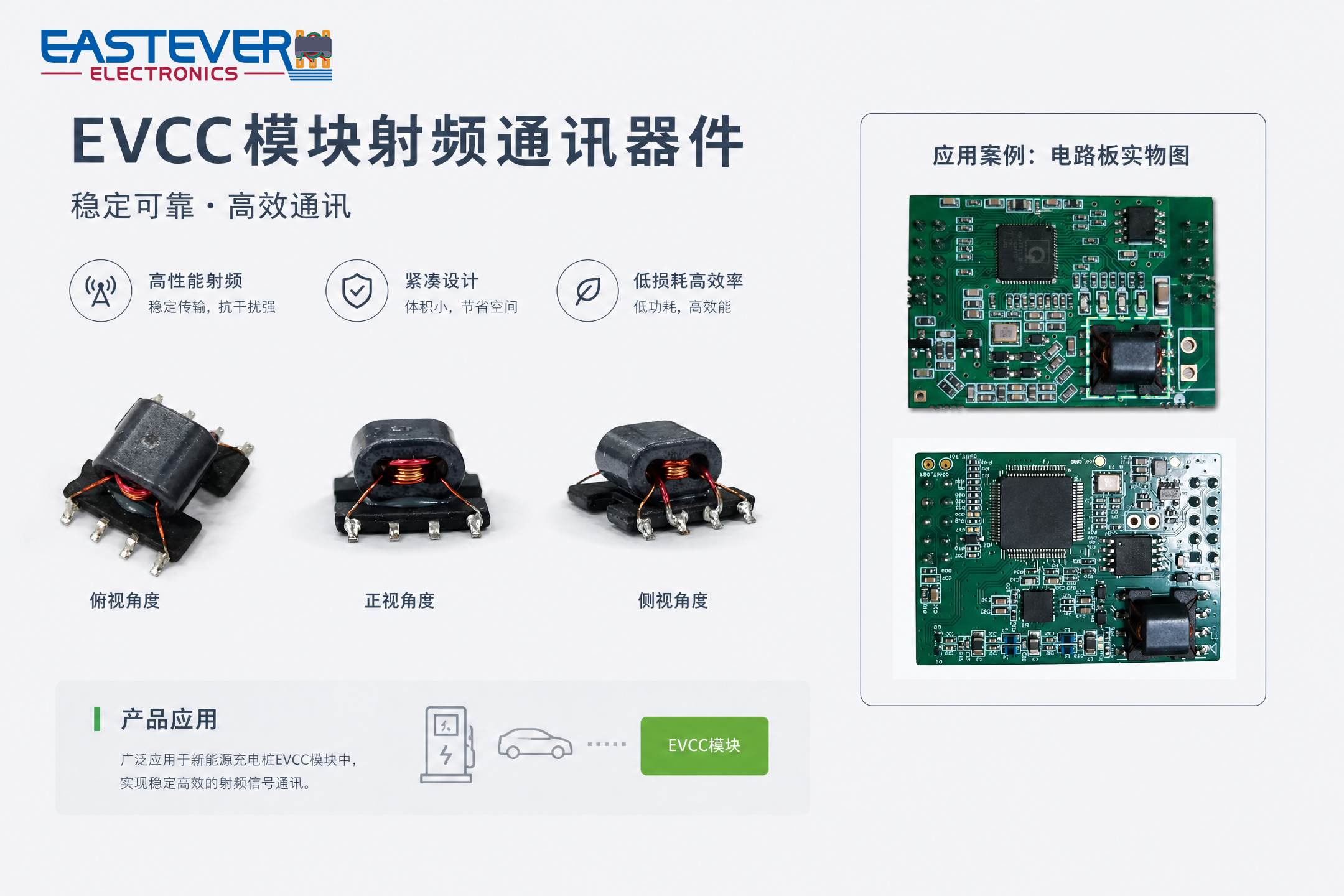

Eastever RF transformer and EVCC communication board application

EV CHARGING MARKET CONTEXT

1.833 million

China new energy vehicle exports
January to May 2026

20 million+

Global electric car sales
in 2025

1.156 million

Public charging points in Europe
preliminary figure, June 2026

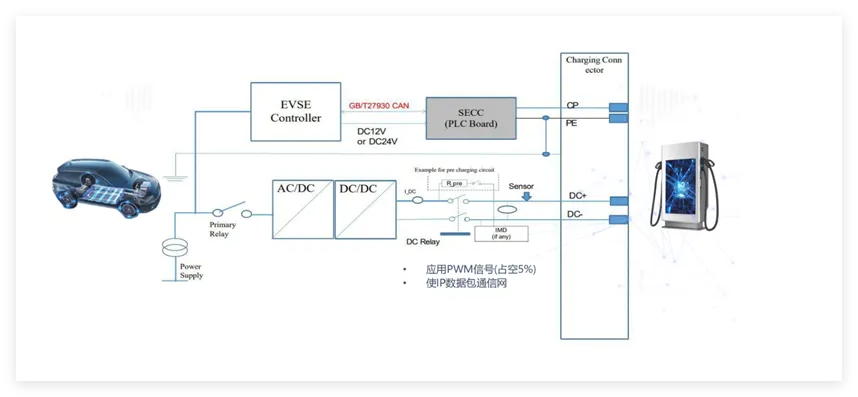

EVCC SECC communication architecture for EV charging station

HOW THE SIGNAL PATH WORKS

Charging power starts after the communication is established.

When an electric vehicle is connected, the charger first exchanges status and charging parameters through its communication system. The EVCC and SECC communication boards support identification, charging negotiation, Plug & Charge, and other high-level communication functions.

PLC communication carries high-frequency signals through the control pilot path.
The communication front end must work alongside power modules, contactors, DC/DC conversion, and complex EMC conditions.
Stable signal transmission helps avoid slow handshakes, communication interruptions, and charging-session failures.

EASTEVER COMPONENT SUPPORT

RF transformer selection for PLC communication front ends.

In EV charging communication circuits, an RF transformer can be used for high-frequency signal coupling and impedance matching. Selection should be evaluated against the target PLC chipset, operating frequency, impedance requirement, insertion loss, withstand voltage, thermal conditions, and production consistency.

RF transformer for EVCC SECC charging communication board

RELATED SEARCH TERMS

RF Transformer Cross-Reference and Sourcing Keywords

When an original imported RF transformer MPN faces long lead times, purchasing teams often evaluate an alternative supplier after electrical and application-level validation. A verified replacement should match the actual circuit, not only the package outline.
