In modern RF and communication systems, LTCC filters and ceramic inductors are very important. They help maintain signal quality and reduce noise.
Both components may look similar in material and shape, but they have different roles in high-frequency circuit design. Knowing the differences helps engineers pick the right parts for better performance. This is important for wireless modules, IoT devices, and fast data transmission.
LTCC (Low Temperature Co-fired Ceramic) filters are multilayer components designed for RF signal filtering. LTCC technology lets us combine many ceramic and conductive layers.
These layers are fired together at low temperatures. This process creates small, stable, and precise filters. These filters work well for high-frequency applications.
Top manufacturers like Murata, TDK, and Taiyo Yuden make LTCC bandpass and low-pass filters. These filters are commonly used in 5G modules, WLAN, GPS, and Bluetooth systems.
Murata LFCN series and BPF series LTCC filters
TDK DEA series LTCC bandpass filters
These components offer:
Excellent temperature stability
Miniaturized size for integration in compact RF front-end designs
High Q-factor and low insertion loss

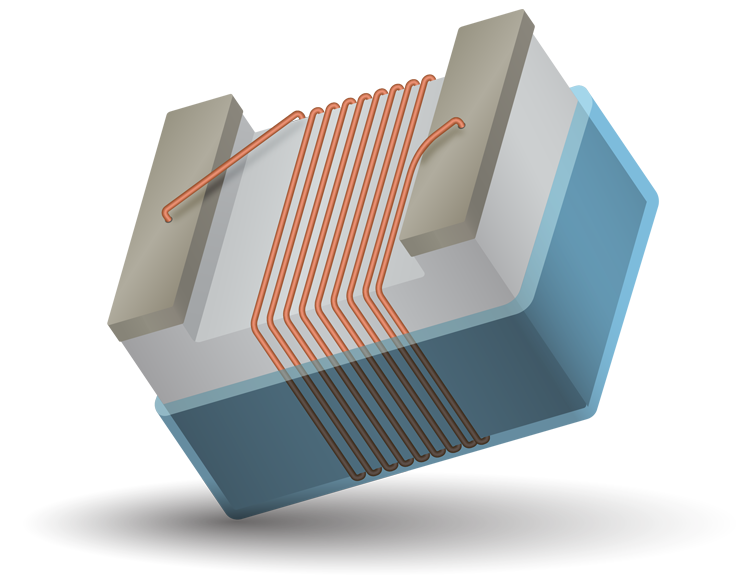

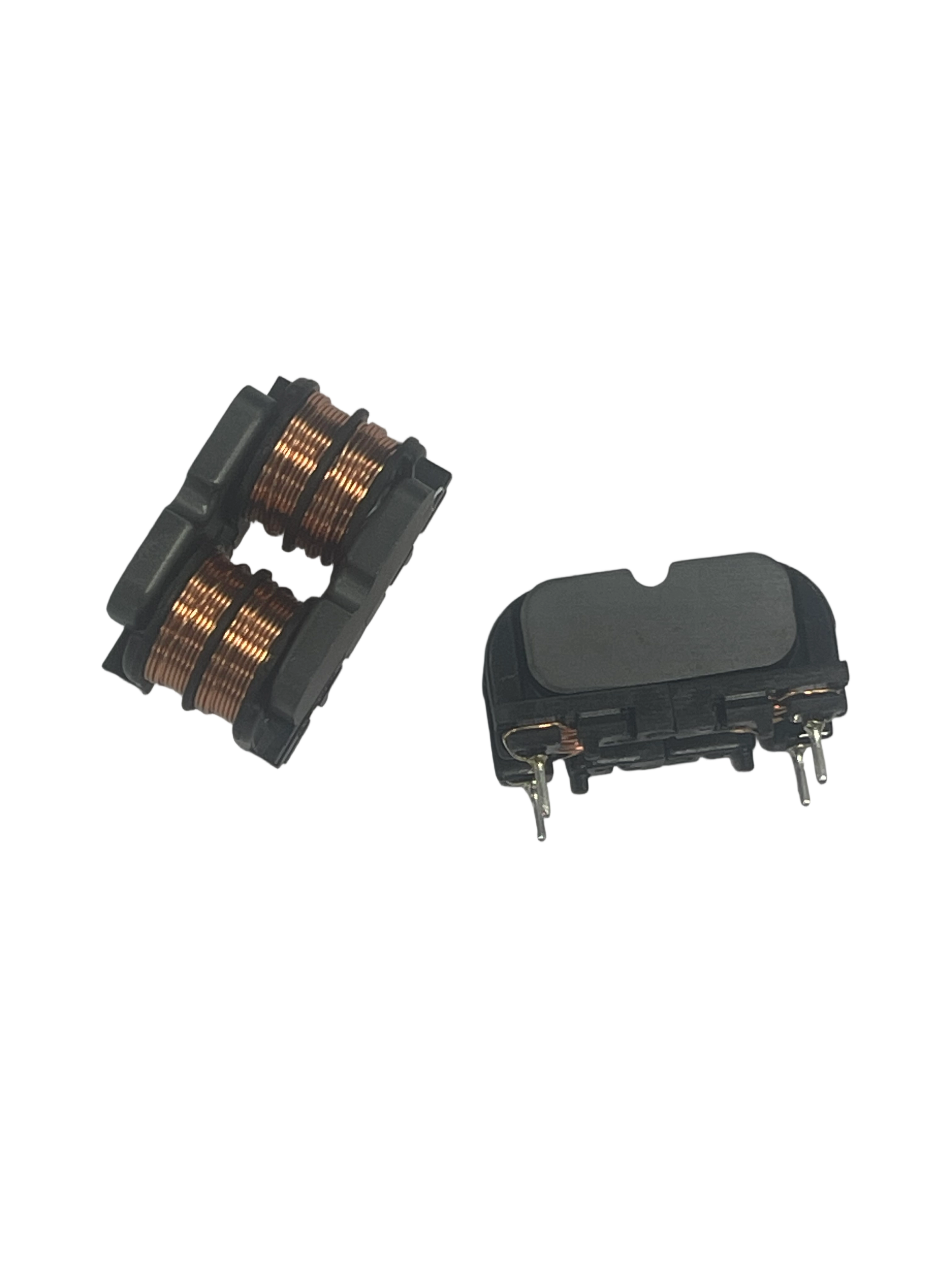

A ceramic inductor is a passive part. It stores magnetic energy to control current flow. It also blocks high-frequency noise. It often uses ceramic material as the core or substrate, providing mechanical stability and low parasitic capacitance.
Manufacturers such as Coilcraft, TDK, and Murata produce a wide range of high-frequency ceramic and wire-wound inductors:
Coilcraft 0603CS and 0402HP series
TDK MLJ series
Murata LQG and LQW series
These inductors are commonly used in:
DC-DC converters
Power supply circuits
RF matching networks
EMI suppression and filtering
Their main advantages include high self-resonant frequency (SRF), tight tolerance, and low DC resistance (DCR).
Function: Filters out unwanted frequency bands. Stores magnetic energy and smooths current.
Core Technology: Multilayer co-fired ceramic structure. Ceramic or ferrite core wound with a conductive coil.
Typical Use: RF signal filtering, band selection, power regulation, impedance matching, and noise suppression.
Frequency Range: Up to several GHz. Wide range (kHz–GHz) depending on the type.
Example Models: Murata BPF series, TDK DEA series, Coilcraft 0603CS, Murata LQG18H series.
Both components use ceramic materials. The LTCC filter has many layers for frequency-selective filtering. In contrast, a ceramic inductor focuses on storing magnetic energy and controlling noise.
LTCC filters are often used in RF front-end modules. They are important in wireless communication, satellite systems, and high-frequency sensors. These filters provide precise filtering, which is very important.
Ceramic inductors are used in power management, signal conditioning, and EMI filtering. They support both analog and digital circuits.
For example:
Designers often pair a Murata LQW15AN ceramic inductor with an LTCC bandpass filter in 2.4 GHz Bluetooth designs.
In 5G antenna modules, engineers can combine TDK LTCC filters with Coilcraft RF inductors for matching and filtering.
When selecting between LTCC filters and ceramic inductors, engineers should consider:
1. Frequency Response – Filters for frequency selection, inductors for impedance control.
2. Insertion Loss and Q-factor – LTCC filters typically have lower loss at GHz frequencies.
3. Package Size and Integration – LTCC filters can integrate multiple passive elements.
4. Cost and Design Complexity – Ceramic inductors are often more cost-effective and simpler to use.
Both LTCC filters and ceramic inductors are essential for high-performance RF design. LTCC filters are effective for frequency filtering.
Examples include Murata BPF, TDK DEA, and Taiyo Yuden FLC series. They also have a compact design. Ceramic inductors from Coilcraft, TDK, and Murata are great for energy storage and reducing EMI.
Choosing the right combination of both can significantly enhance the overall signal quality, power efficiency, and miniaturization of electronic systems.
