New RF Passive Components

RF balun transformers, directional couplers and power dividers for broadband communication, CATV and RF signal distribution applications.

RF Balun Transformers

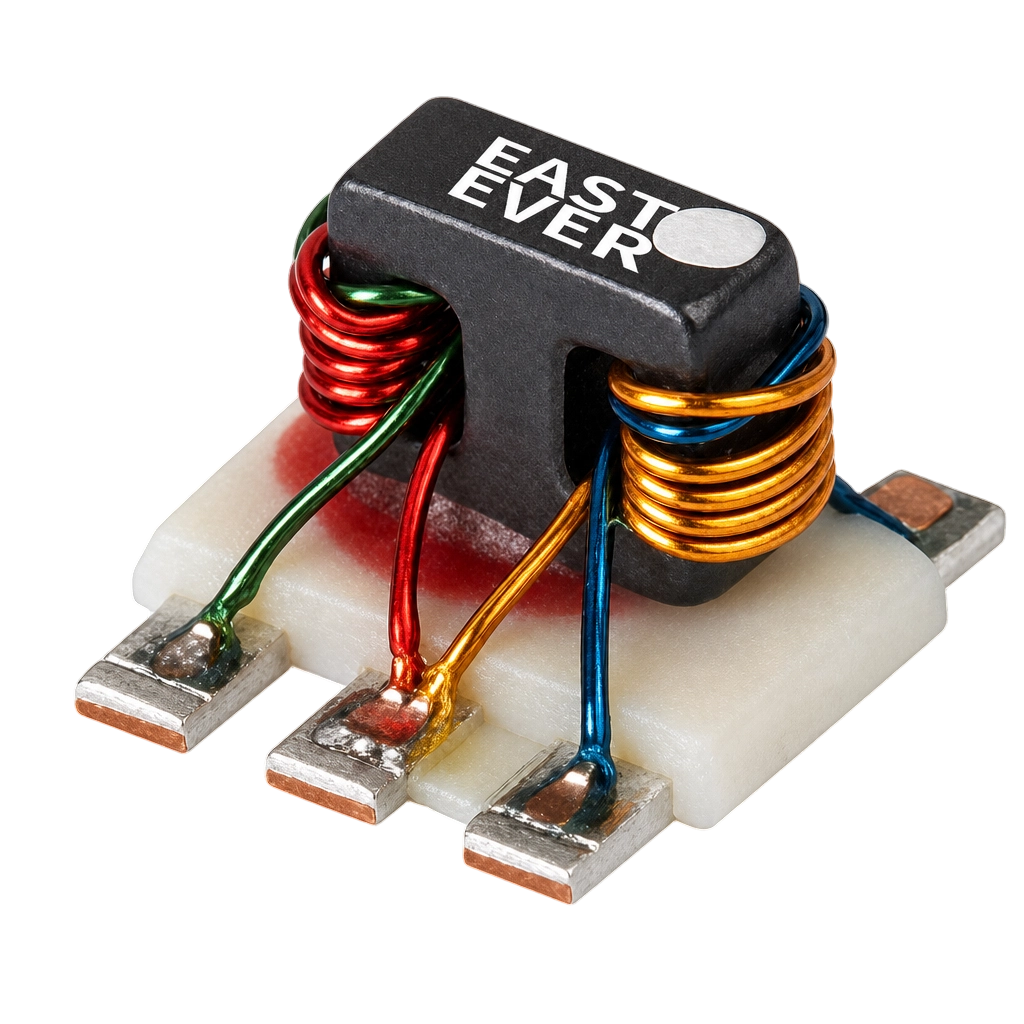

RF BALUN

EBG1382-B012B30

Reference P/N: TCM1-382WX+

Freq. Range0.5-3800 MHz
Impedance50 Ohm
Turns Ratio1:1
Main Line Loss1.1-3.0 dB
Input RL12 dB Typ.

RF BALUN

EBL2722-A012B74

Reference P/N: TCM2-722X+

Freq. Range400-7200 MHz
Impedance50 Ohm
Turns Ratio1:2
Main Line Loss1.0-3.5 dB
Input RL10-13 dB Typ.

RF Directional Couplers

RF COUPLER

ECJ1001-D012331

Reference P/N: TCD-10-23BDX+

Freq. Range5-2250 MHz
Impedance50 Ohm
Coupling10 dB
Main Line Loss1.1-2.6 dB
Directivity9-17 dB

RF COUPLER

ECJ1701-C143708

Reference P/N: RDC17-182-75+

Freq. Range5-1800 MHz
Impedance75 Ohm
Coupling17 dB
Main Line Loss0.7-3.7 dB
Isolation24-43 dB

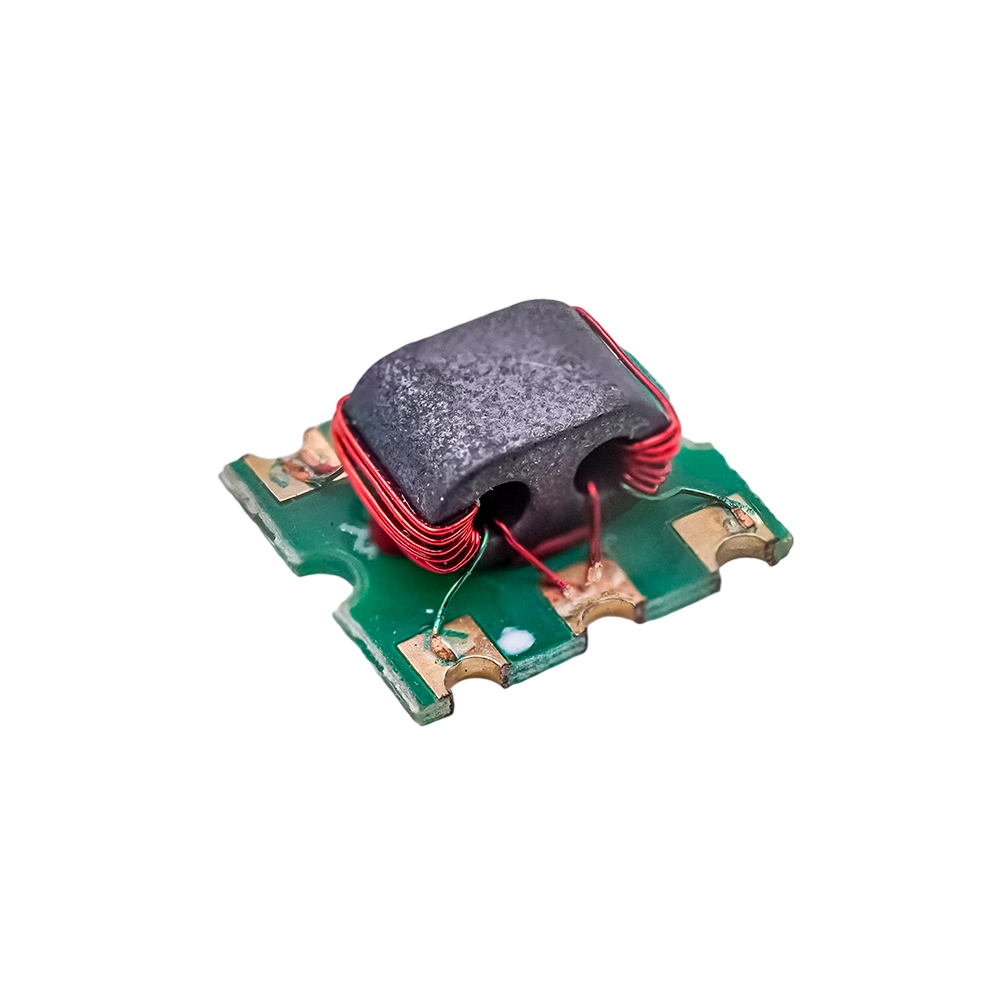

RF COUPLER

ECJ0701-B001534

Reference P/N: MACP-011138

Freq. Range5-1800 MHz
Impedance75 Ohm
Coupling7.5 dB
Main Line Loss0.7-3.7 dB
Isolation21-43 dB

RF Power Dividers & Combiners

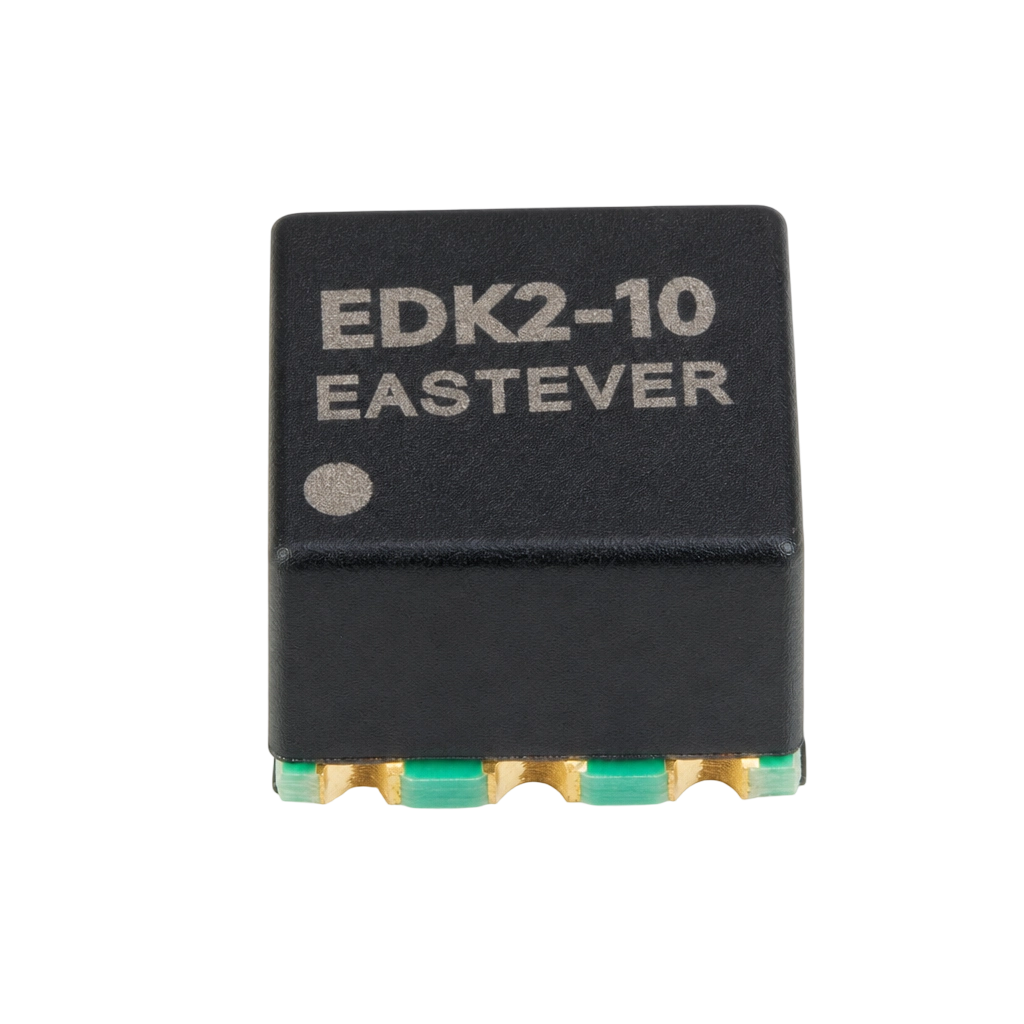

POWER DIVIDER

EDK2-10-B023260

Reference P/N: ADP-2-10+

Freq. Range5-1000 MHz
Z0 / Ways50 Ohm / 2-Way
Insertion Loss0.3-1.2 dB
Isolation15-25 dB
Input Power0.5 W Max.

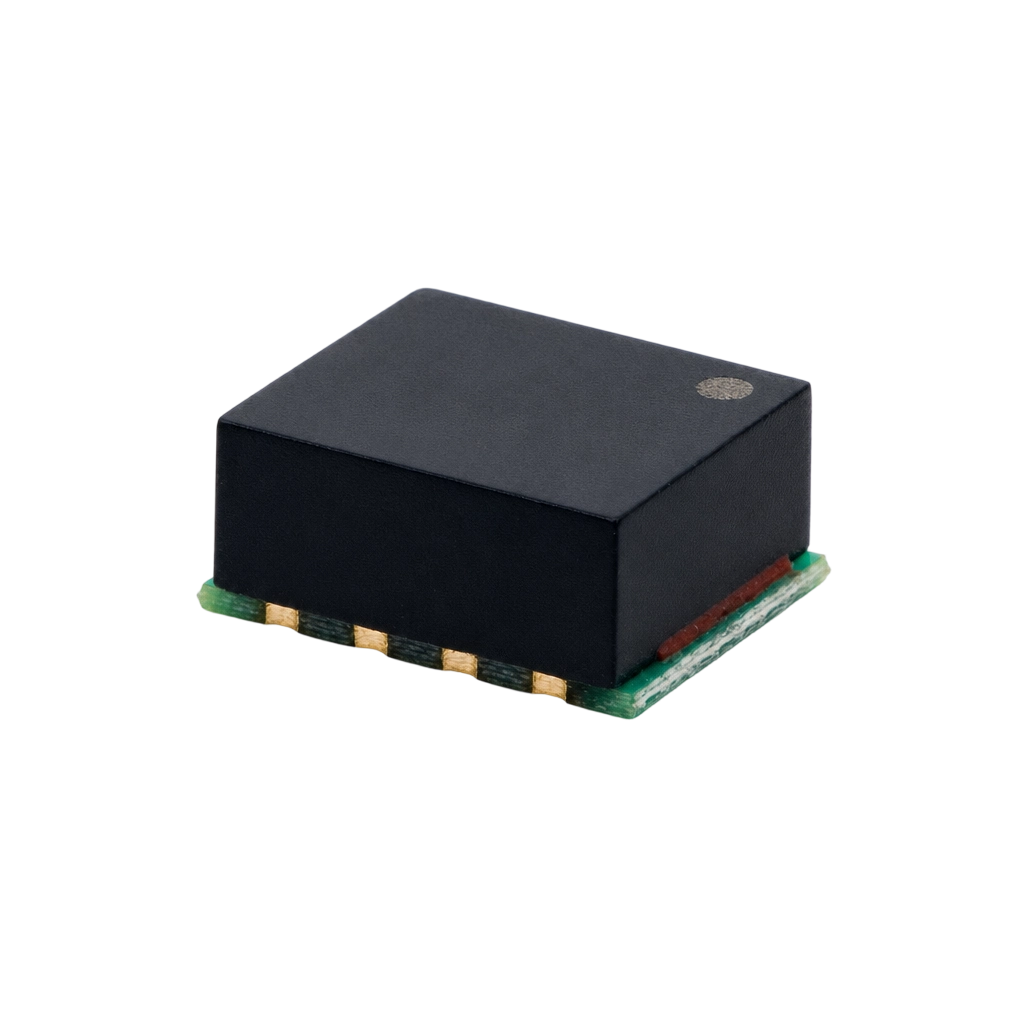

POWER DIVIDER

EDK2-12-G023811

Reference P/N: ADP-2-1+

Freq. Range0.5-400 MHz
Z0 / Ways50 Ohm / 2-Way
Insertion Loss0.2-1.0 dB
Isolation20-25 dB
Input Power0.5 W Max.

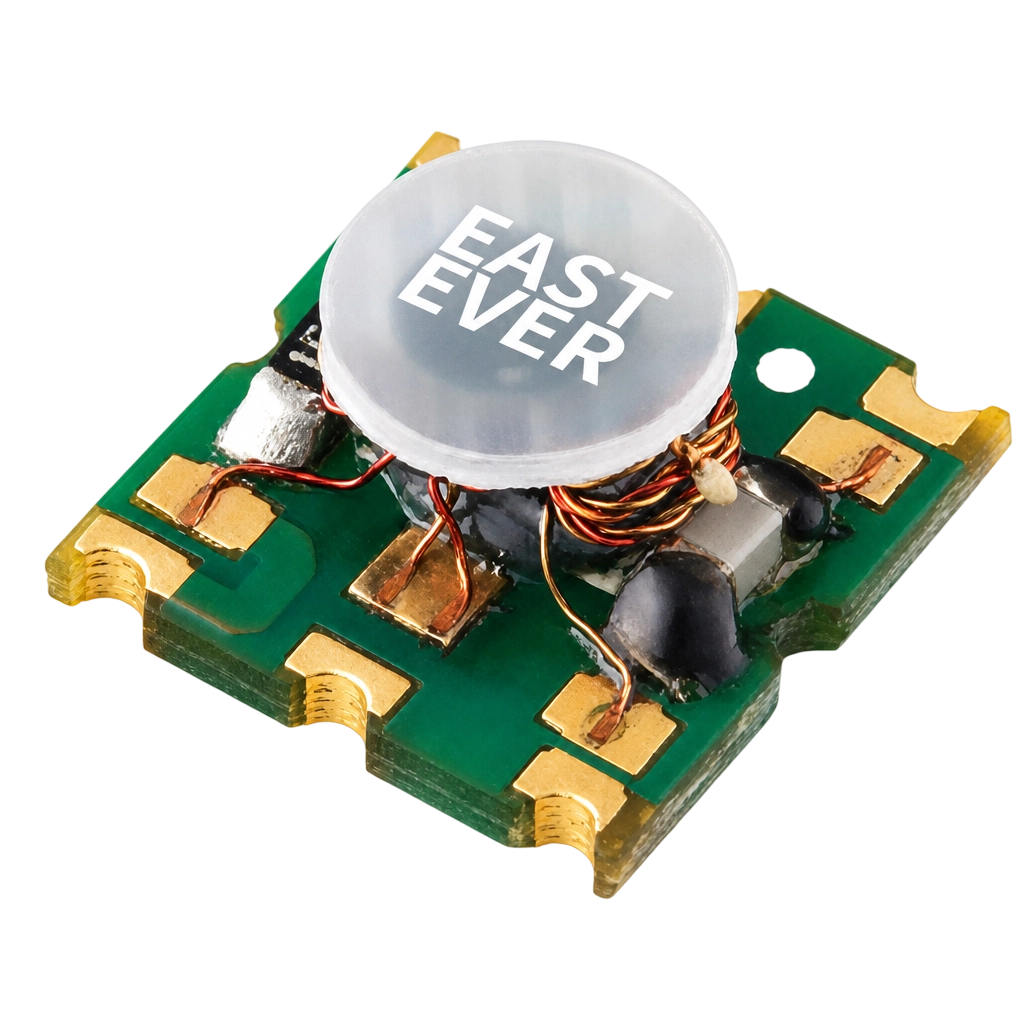

POWER DIVIDER

EDK4-10-B095331

Reference P/N: SCP-4-1+

Freq. Range1-400 MHz
Z0 / Ways50 Ohm / 4-Way
Insertion Loss0.4-1.2 dB
Isolation18-26 dB
Input Power0.5 W Max.

POWER DIVIDER

EDL2-30-G203263

Reference P/N: RPS-2-30+

Freq. Range10-3000 MHz
Z0 / Ways50 Ohm / 2-Way
Insertion Loss0.6-2.5 dB
Isolation15-22 dB
Input Power0.5 W Max.

POWER DIVIDER

EDD2-20-G023694

Reference P/N: ADP2-20-75+

Freq. Range5-2000 MHz
Z0 / Ways75 Ohm / 2-Way
Insertion Loss0.4-1.2 dB
Isolation12-28 dB
Input Power0.5 W Max.
