TCHB0905-101Y
EASTEVER
100uH
1:1
100
Description

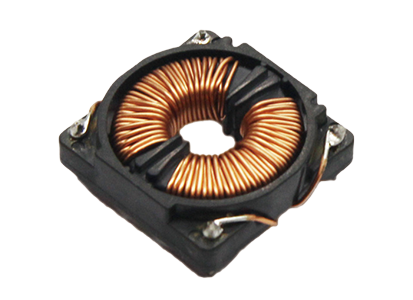

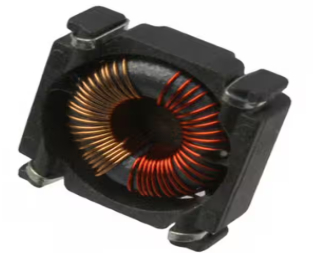

This component offers a minimum 100.0uH inductance across terminals 1-2 and 4-3 (tested at 100KHz/0.1V) and a 1:1±5% turns ratio (N1:N2, 14:14) for balanced signal transmission. It features a maximum 100mΩ DCR (at 25°C) to minimize power loss and passes AC380V/1mA/2S hi-pot testing (N1-N2) for reliable insulation. All electrical properties undergo rigorous testing to ensure consistent performance in diverse applications.
Features
Stable High-Frequency Performance: 100.0uH min inductance at 100KHz ensures reliable operation in high-frequency circuits.
Low Power Loss: 100mΩ max DCR reduces resistive losses, enhancing energy efficiency in current-carrying applications.
Precise 1:1 Ratio: Tight ±5% tolerance on turns ratio makes it ideal for signal matching or isolation.
Basic Insulation Safety: AC380V hi-pot rating provides adequate protection for low-to-moderate voltage environments.
Symmetric Design: Identical terminal specifications (1-2 and 4-3) simplify circuit integration and design flexibility.
Consumer Electronics
Signal Filtering Circuits
Power Supply Modules
Industrial Control Auxiliaries
Automotive Low-Voltage Systems
