| Quantity: | |
|---|---|
TCHB1105-251Y-00
EASTEVER
250uH
1:1
200
Description

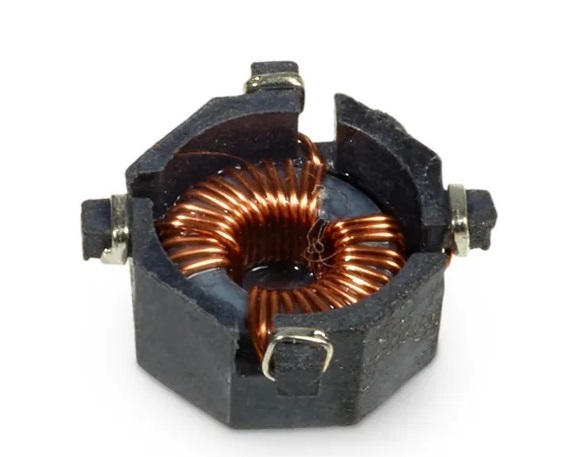

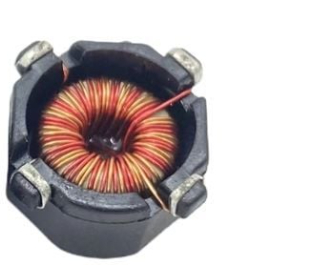

This inductor features a minimum 250uH inductance across terminals 1-2 and 4-3 (tested at 10KHz/0.3V) and a 1:1 turns ratio for balanced signal transmission. It boasts a maximum 0.2Ω DCR (at 25°C) to minimize power loss, supports up to 1.5A rated current, and passes AC1KV/1mA/2S hi-pot testing (N1-N2) for safety. RoHS compliant, it operates reliably in temperatures ranging from -25°C to +105°C, with all electrical properties rigorously tested for performance consistency.
Features
• Stable Inductance: 250uH min at 10KHz ensures consistent signal/energy transfer in low-frequency circuits.
• Low Power Loss: 0.2Ω max DCR enhances efficiency by reducing resistive losses during current flow.
• Balanced 1:1 Ratio: Precise turns ratio ideal for signal isolation or current matching applications.
• High Current Handling: 1.5A max rated current suits moderate-power circuits.
• Safety Certified: AC1KV hi-pot rating ensures robust insulation and reliability in industrial environments.
• Wide Temperature Range: Operates from -25°C to +105°C, adapting to harsh or fluctuating conditions.
Applications
• Industrial Controls
• Consumer Electronics
• Automotive Auxiliaries
• Power Supply Circuits
• Signal Isolation Systems
Description
This inductor features a minimum 250uH inductance across terminals 1-2 and 4-3 (tested at 10KHz/0.3V) and a 1:1 turns ratio for balanced signal transmission. It boasts a maximum 0.2Ω DCR (at 25°C) to minimize power loss, supports up to 1.5A rated current, and passes AC1KV/1mA/2S hi-pot testing (N1-N2) for safety. RoHS compliant, it operates reliably in temperatures ranging from -25°C to +105°C, with all electrical properties rigorously tested for performance consistency.
