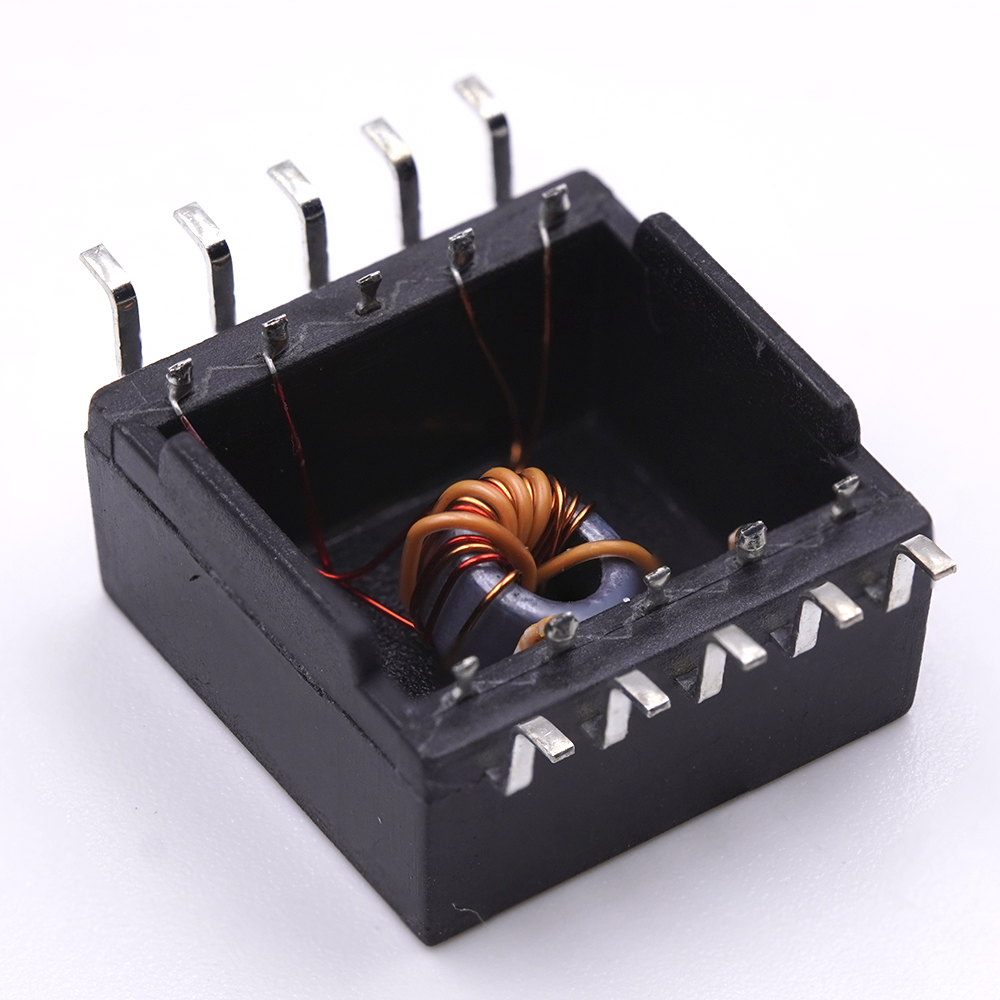

TCHB0703-201Y
EASTEVER
200uH
1:1
600
TCHB0703-201Y ≥200uH inductance (1-3=6-4, @10KHz/0.1V), ≤600mΩ DCR, and a 1:1±10% turns ratio (1-3:6-4). It supports a typical 300mA rated current, passes AC3500V/1mA/60S hi-pot (1-3,6-4), and is RoHS compliant. Operating temperature ranges from -40°C to +125°C (including temperature rise), with storage at -25°C to +40°C (75%RH max).
Features
Stable inductance performance at 10KHz
Low DCR for efficient power transfer
1:1 turns ratio with tight tolerance for balanced signal transmission
High hi-pot rating for enhanced safety and insulation
Wide operating temperature range (-40°C to +125°C) for rugged environments
RoHS compliance for global market compatibility
Applications
Power conversion circuits
Signal isolation systems
Industrial control modules
Automotive electronics
Consumer devices requiring noise filtering
TCHB0703-201Y ≥200uH inductance (1-3=6-4, @10KHz/0.1V), ≤600mΩ DCR, and a 1:1±10% turns ratio (1-3:6-4). It supports a typical 300mA rated current, passes AC3500V/1mA/60S hi-pot (1-3,6-4), and is RoHS compliant. Operating temperature ranges from -40°C to +125°C (including temperature rise), with storage at -25°C to +40°C (75%RH max).
