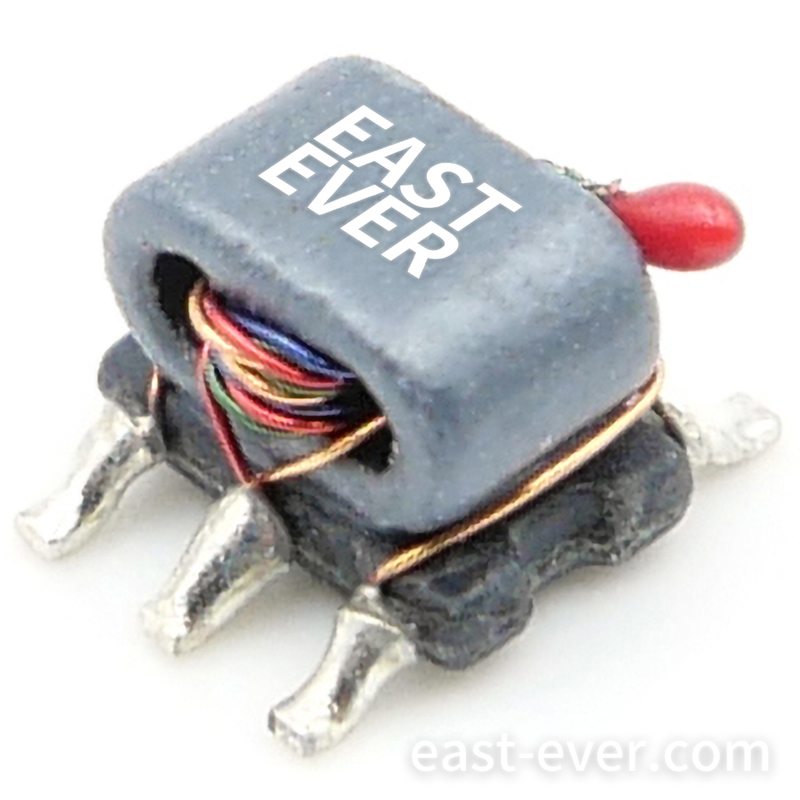

75Ω 1: 6CT Flux Coupled Transformer 1-300 MHz

Share to:

75Ω 1: 6CT Flux Coupled Transformer 1-300 MHz

Features
Operating temperature range: -40℃ to +85℃
Storage temperature range: -55℃ to +100℃
Applications
Impedance matching
Balanced amplifier
Balun
Cellular and VHF

Availability:

Quantity:


Inquire Add to Basket

Model: EBA1040-H004109
Brand: EASTEVER
Amp(dB)Typ: 0.2
IL(dB)Typ : 0.8
Input RL(dB)Typ: 20
Zo(Ω): 75
SEC: A
Package: B012
Ω Ratio Pri/Sec: 1:6CT
Min(MHz): 1
Max(MHz): 300
Phase(°)Typ: 3
Data Sheet: EBA1040-H004109.pdf

Product Description

For Docsis 3.0 & 3.1 Cable Modem.

For Wideband Push-pull Amplifiers.

For CATV Amplifiers Module & Set top box.

For CATV Optical Receivers and Amplifiers.

For VHF/UHF Transmitters and Push-pull Amplifiers.

RF Balun Transformer Coupled Transformer Antenna Balun
