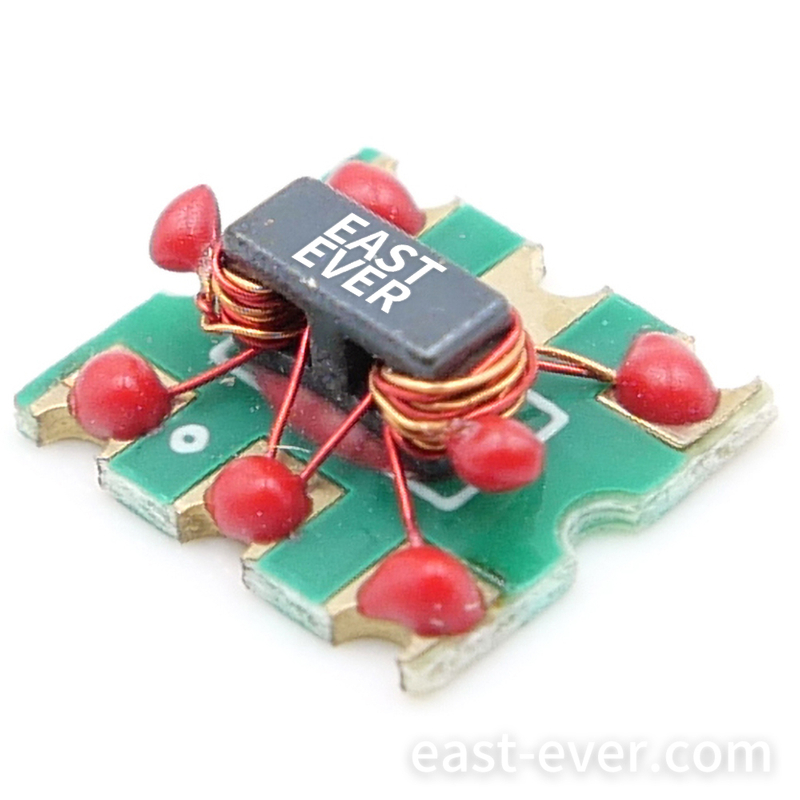

75Ω 1:1 Transmission Line Transformer 5-1250 MHz

Share to:

75Ω 1:1 Transmission Line Transformer 5-1250 MHz

Features •Operating temperature range: -40℃ to +125℃ •Storage temperature range: -55℃ to +100℃ •260°C Reflow Compatible •RoHS compliant and lead free •Input RF Power:2000 mW •DC Current:1500 mA Applications • Impedance matching • Balanced amplifier • Balun • Cellular and VHF

Availability:

Quantity:



Inquire Add to Basket

Model:
EBG1085-D001081
Brand:
EASTEVER
Amp(dB)Typ:
0.2
IL(dB)Typ :
1.0
Input RL(dB)Typ:
25
Zo(Ω):
75
SEC:
G
Package:
B001
Ω Ratio Pri/Sec:
1:1
Min(MHz):
5
Max(MHz):
1250
Phase(°)Typ:
1
Data Sheet:
EBG1085-D001081.pdf
