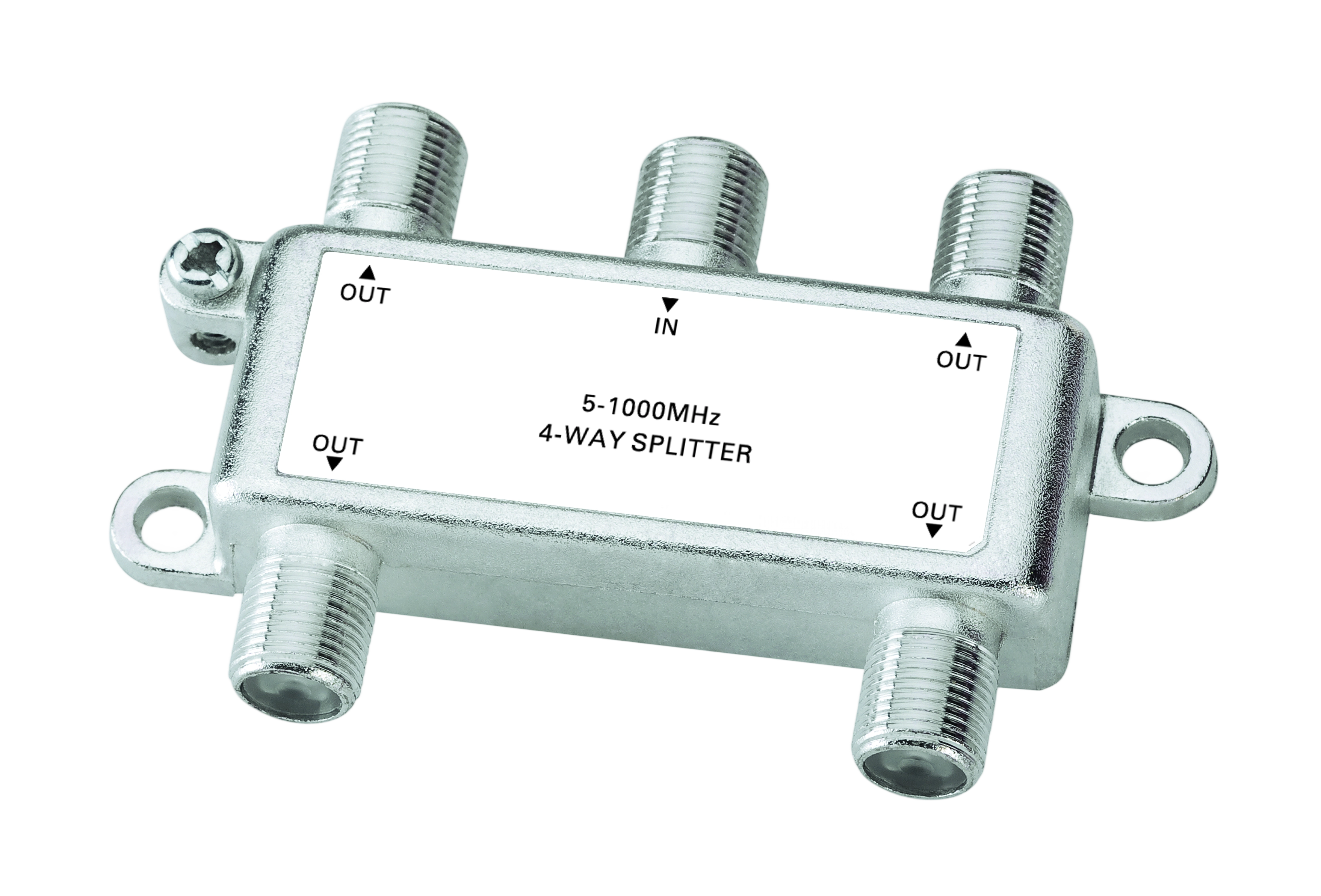

In the area of wireless communication and microwave system, Uniform signal distribution is key to ensure stable equipment operation and improve system efficiency. In scenarios requiring simultaneous operation of multiple antennas, receivers, or test equipment, the 1-to-4 power divider has become a critical component frequently utilized by engineers.
Functioning as a "signal distribution hub," it evenly distributes an input signal across four output ports to achieve balanced signal output, thereby facilitating subsequent circuit design and system integration.
However, the key of 1- to- 4 power divider is the low-loss signal distribution capability , meaning that the signal losses lower during transmission and contains the high quality.
For instance, in the antenna array design of 5G base stations, employing a 1:4 power divider ensures uniform signal strength distribution across all antenna units, effectively preventing communication quality degradation caused by power imbalance. Additionally, this configuration supports wideband operation, typically covering frequency ranges from 100 MHz to 6 GHz, making it compatible with diverse communication standards including WiFi, Bluetooth, GPS, and various radar systems.

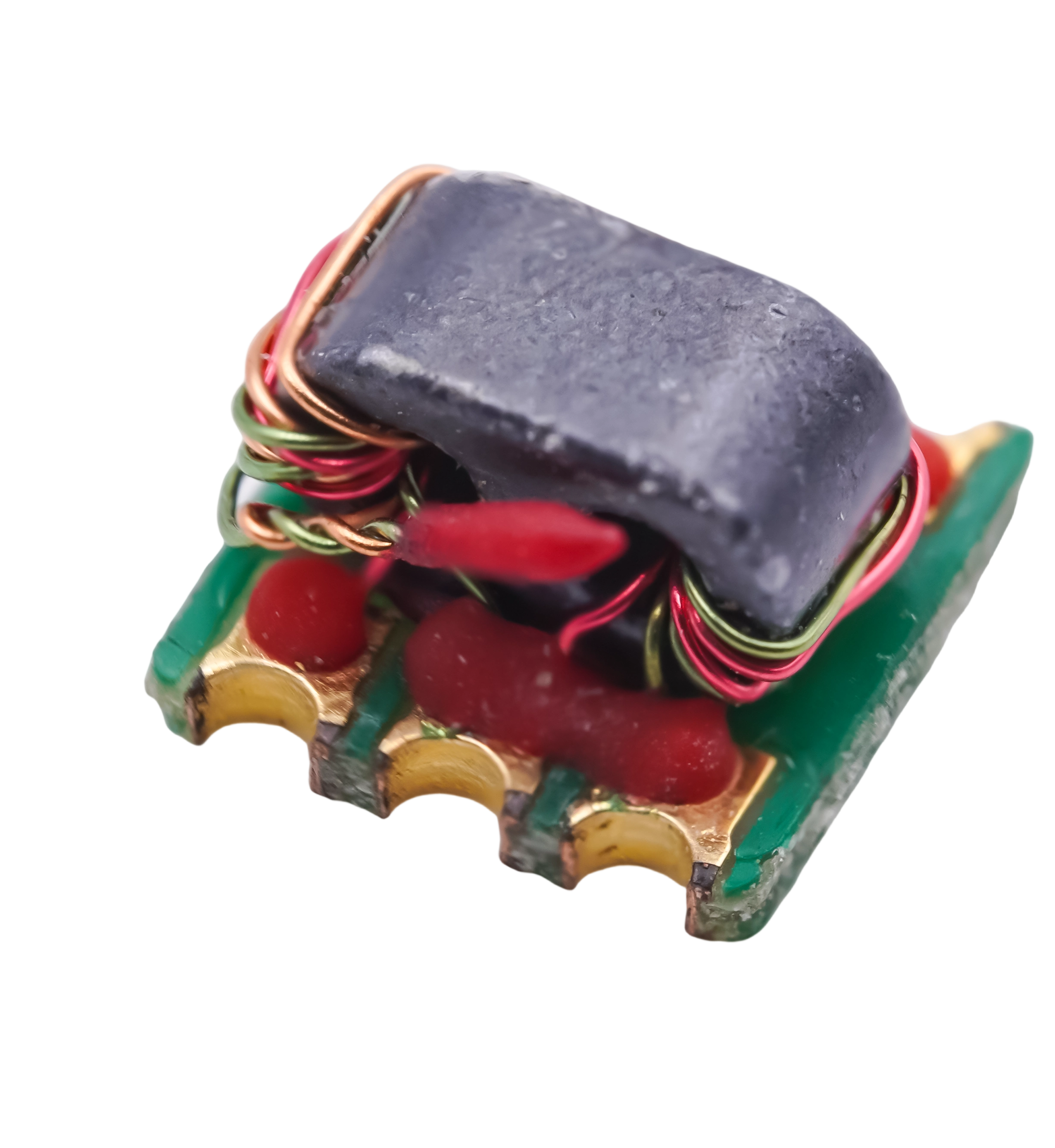

In fact , the 1 to 4 power divider also employ waveguide or microstrip structure . Among these components, the core device—the transmission line transformer（balun）—is widely used in high-frequency circuits. For household appliances such as consumer electronics, including CATV or industrial communication systems, such electronic components may be more suitable due to their superior performance and suitability for mass production. Regardless of the structural design, selecting an appropriate power divider is critical to ensuring the system's overall performance.
It is crucial to note that phase consistency must be carefully considered when using a 1to 4 power divider. An ideal power divider should ensure identical signal phases at all output ports to prevent interference or phase imbalance caused by signal superposition. In multi-antenna systems, phase consistency directly impacts signal synthesis accuracy and overall system performance. Therefore, during design and selection processes, engineers typically evaluate the divider's phase balance metrics to ensure compliance with application requirements.
Furthermore, the isolation performance of power divider is a critical parameter that cannot be overlooked. Effective isolation prevents signal crosstalk between output ports, particularly in high-power applications where such interference can severely impact system performance. Typically, a 1:4 power divider achieves over 20 dB isolation between ports, providing enhanced flexibility and stability for system design.
In summary, the one-way four-power divider serves as a fundamental component in RF and microwave systems, playing a crucial role that cannot be underestimated. It not only enhances signal transmission uniformity but also performs irreplaceable functions across multiple domains. With continuous technological advancements, such devices are being optimized to meet increasingly complex communication requirements. For engineers, understanding their working principles and application scenarios constitutes the first step toward building efficient and stable systems.
