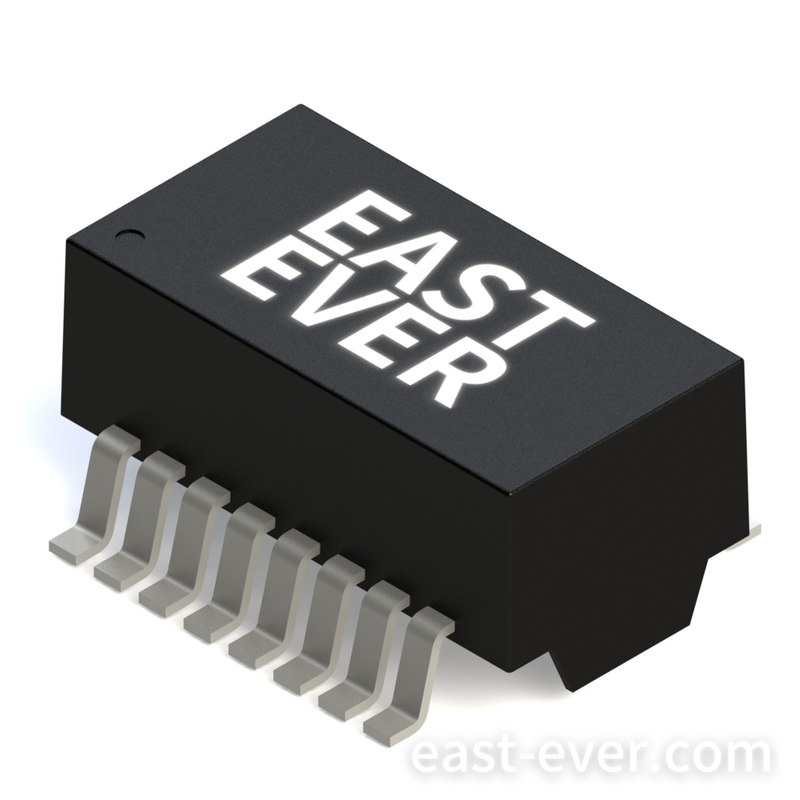

10/100 Base-TX Lan Transformer for RJ45use

be connected with the IC P/N :MSD57xx（STB）; relevant to PULSE : H1102NL,H1260NL and HC1001NL, wurth 7490100111A
Availability:
Quantity:
Inquire Add to Basket

  • ES16037G

  • EASTEVER

  • -30@1-100MHz

  • -1.1@1-100MHz

  • 1CT:1CT

  • Single

  • 16

  • -12@1-80MHz

  • -30@1-100MHz

  • 1500VAC 1mA 60S

  • ES16037G.pdf

H1102NL

RoHS-5 peak reflow temperature rating 235°C

RoHS-6 peak reflow temperature rating 245°C°°

Meets IEEE 802.3 specification

Compact footprint for use in the most space-restrictive applications


10/100 Base-TX Lan Transformer for RJ45 Antenna Balun
